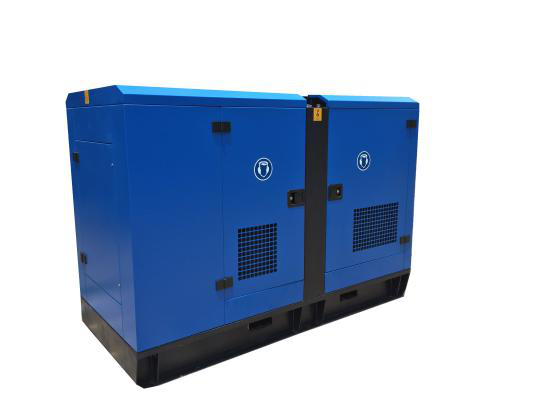

KDGC Series Diesel Generator Sets

Powered by Cummins Engines

KDGC28S          50HZ

Ratings

Standby Power
KVA
35

KW
28

Prime  Power
KVA
30

KW
24

Voltage type
50Hz,380/220V, 3 phases and 4 wires

Ratings at 0.8 power factor

1) Standby Power – Power available at a variable load when a main power network fails, running up to a maximum of 500 hours per year. Over load is not allowed.

2) Prime Power – Power available at variable load in lieu of main power network. An overload of 10% is allowed for one hour in every twelve hours of operation.

Performance Data

Engine Brand & Model
                           Cummins  4BT3.9-G2

Alternator Brand & Model
                        Leroy Somer  LSA42.3 VS3

Control System
                            Deepsea DSE6120

Standard Noise Level@7m (Soundproof Sets)

75 dBA

Circuit Breaker Type
                                     3 Poles MCCB

Frequency & Phase
                         50hz 3Phases + 4Wires

Engine Speed (RPM)

1500

Fuel Consumption (L/hr)

100% Load

7.4

75% Load

6.0

50% Load

4.1

25% Load

2.0

Dimensions and Weights

Content
Open type
Soundproof Set

Dimensions: (mm)
L
1700
2370

W
760
1100

H
1400
1700

Weights (kg)
825
1437

Engine Brand & Model: Cummins 4BT3.9-G2

Standard Cummins Engine Data

No. of Cylinders
4 vertical in-line
Gross Engine Power (kW)
Prime
36

Cycle
4 Stroke
Standby
40

Bore * Stroke (mm)
102  * 120
Compression Ratio
16.5:1

Induction
Turbocharger
Displacement (L)
3.9

Cooling Method
Water cooled
Governing Type
Electrical

Starting method
24V DC motor
Coolant capacity engine only (L)
7.2

Lubricant Oil
15W40-CF4 or above grade
Lube System Capacity (L)
11

Alternator Brand & Model: LSA42.3 VS3, 50Hz.

Standard Leroy Somer Alternator Data

Continuous power
32KVA / 25.6kW
Efficiency (%)
88.3

Power factor
0.8
Temperature rise
125K

Excitation system
Shunt
Insulation class
H

A.V.R.
R220
Enclosure protection
IP23

Voltage regulation
± 0.5 %
Winding leads
6

Bearing number
1 bearing
Ambient temperature (°C)
40

Controller Brand & Model: Deepsea DSE6120

The DSE6120 is an Auto Start & Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. It monitors speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, and the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

The controller offers electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

The controller can also be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.
