Description

Description

Description

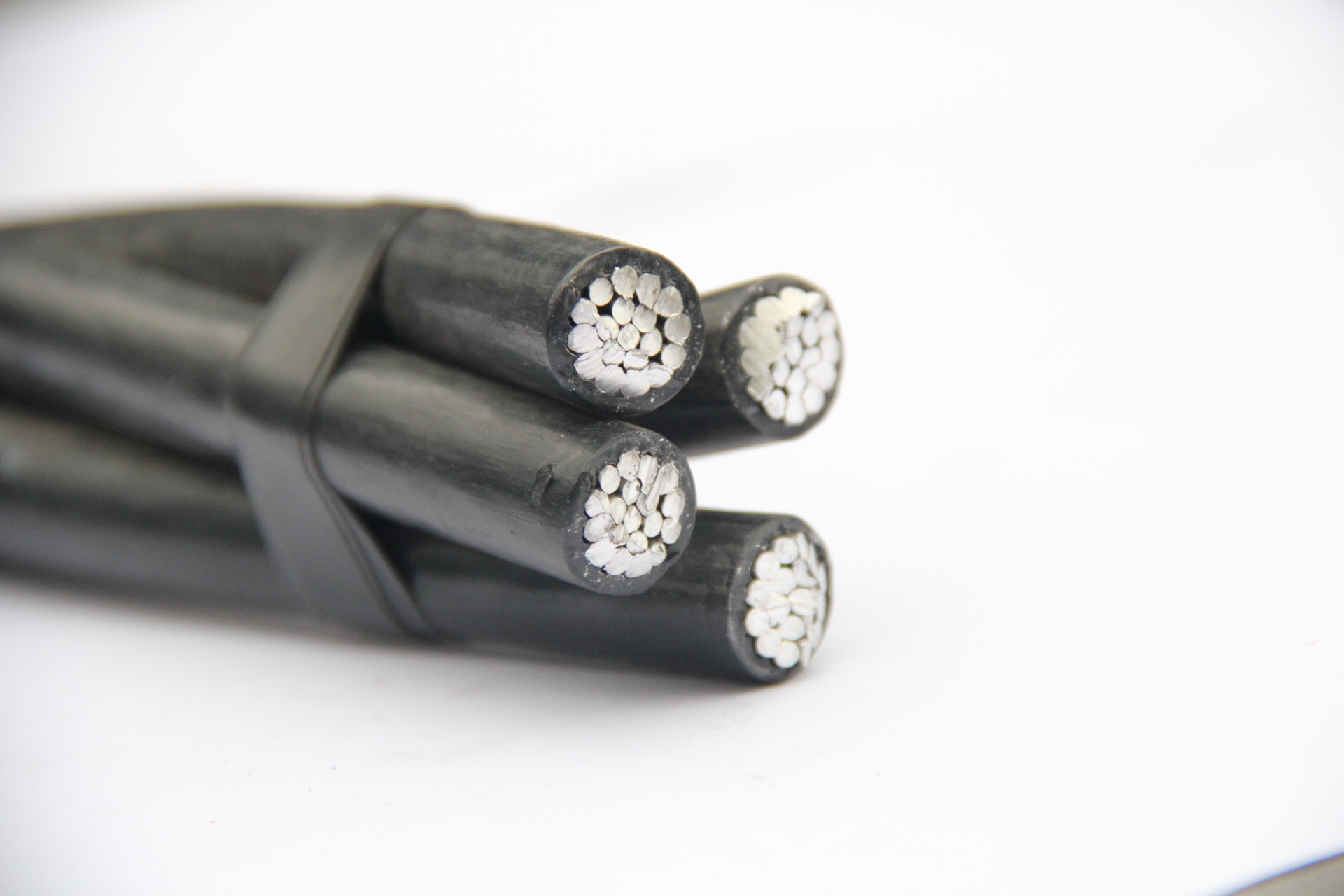

Air bundle cable (ABC)

Conductor:
1/2 (solid) stranded aluminum wire

Insulation:
PVC / PE / XLPE compound

Insulation color
black

temperature range:
-30 – 70℃

Q:
600 / 1000V

Test voltage:
3500 V

Minimum bending radius:
12D

standard
IEC 60552

Technical data

Nominal cross-sectional area
Conductor structure
Insulation Materials
Insulation thickness
approximately. Total diameter
approximately.
weight

Stage
(compressed AL)
Neutral
(naked ACSR)

(square millimeters)
（No./mm）
Aluminum (No./mm)
Steel (No./mm)
(mm)
(mm)
(kg/km)

1 16 + 16
7 / 1.72
6 / 1.72
1 / 1.72
PVC / PE / XLPE
1.2
12.5
121.9

1×25 + 25
7 / 2.15
6 / 2.15
1 / 2.15
PVC / PE / XLPE
1.2
14.9
182.2

1×35 + 35
7 / 2.54
6 / 2.54
1 / 2.54
PVC / PE / XLPE
1.4
17.5
254.7

1×70 + 70
19 / 2.15
12 / 2.15
7 / 2.15
PVC / PE / XLPE
1.4
23.6
382.2

1×95 + 95
19 / 2.54
12 / 2.54
7 / 2.54
PVC / PE / XLPE
1.6
27.6
528.2

2×16 + 16
7 / 1.72
6 / 1.72
1 / 1.72
PVC / PE / XLPE
1.2
14.2
187.6

2×25 + 25
7 / 2.15
6 / 2.15
1 / 2.15
PVC / PE / XLPE
1.2
16.7
273.8

2×35 + 35
7 / 2.54
6 / 2.54
1 / 2.54
PVC / PE / XLPE
1.4
19.7
386.9

2×70 + 70
19 / 2.15
12 / 2.15
7 / 2.15
PVC / PE / XLPE
1.4
26.1
617.2

2×95 + 95
19 / 2.54
12 / 2.54
7 / 2.54
PVC / PE / XLPE
1.6
30.5
850.9

3×70 + 70
19 / 2.15
12 / 2.15
7 / 2.15
PVC / PE / XLPE
1.4
29.7
1024.3

3×95 + 95
19 / 2.54
12 / 2.54
7 / 2.54
PVC / PE / XLPE
1.6
34.6

specification
Conductor structure
insulation
Insulation
thickness
Approximate diameter
Approximate weight

Phase
(AL)
Neutral
(AL)

mm2
No./mm
No./mm
(mm)
(mm)
(kg/km)

1*10+1*10
7/1.35
7/1.35
PVC/PE/XLPE
1
10.1
71.5

1*16+1*16
7/1.72
7/1.72
PVC/PE/XLPE
1.2
12.5
110.1

1*25+1*25
7/2.15
7/2.15
PVC/PE/XLPE
1.2
14.9
163.9

1*35+1*35
7/2.54
7/2.54
PVC/PE/XLPE
1.4
17.5
229

1*50+1*50
7/2.92
7/2.92
PVC/PE/XLPE
1.4
20.1
300

1*70+1*70
19/2.15
19/2.15
PVC/PE/XLPE
1.4
23.6
423.2

1*95+1*95
19/2.54
19/2.54
PVC/PE/XLPE
1.6
27.6
585.4

2*16+1*16
7/1.72
7/1.72
PVC/PE/XLPE
1.2
14.2
175.8

2*25+1*25
7/2.15
7/2.15
PVC/PE/XLPE
1.2
16.7
258.4

2*35+1*35
7/2.54
7/2.54
PVC/PE/XLPE
1.4
19.7
361.2

2*50+1*50
7/2.92
7/2.92
PVC/PE/XLPE
1.4
22.5
472.1

2*70+1*70
19/2.15
19/2.15
PVC/PE/XLPE
1.4
26.1
658.3

2*95+1*95
19/2.54
19/2.54
PVC/PE/XLPE
1.6
30.5
908.2

3*16+1*16
7/1.72
7/1.72
PVC/PE/XLPE
1.2
16.3
241.5

3*25+1*25
7/2.15
7/2.15
PVC/PE/XLPE
1.2
19.1
353.6

3*35+1*35
7/2.54
7/2.54
PVC/PE/XLPE
1.4
22.5
493.5

3*50+1*50
7/2.92
7/2.92
PVC/PE/XLPE
1.4
25.7
644.1

3*70+1*70
19/2.15
19/2.15
PVC/PE/XLPE
1.4
29.7
895.2

3*95+1*95
19/2.54
19/2.54
PVC/PE/XLPE
1.6
34.6
1233

Application
The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of an urban. Primarily used for overhead service applications such as street lighting,outdoor lighting, and temporary service for construction.
