Description

Descriptive abstract

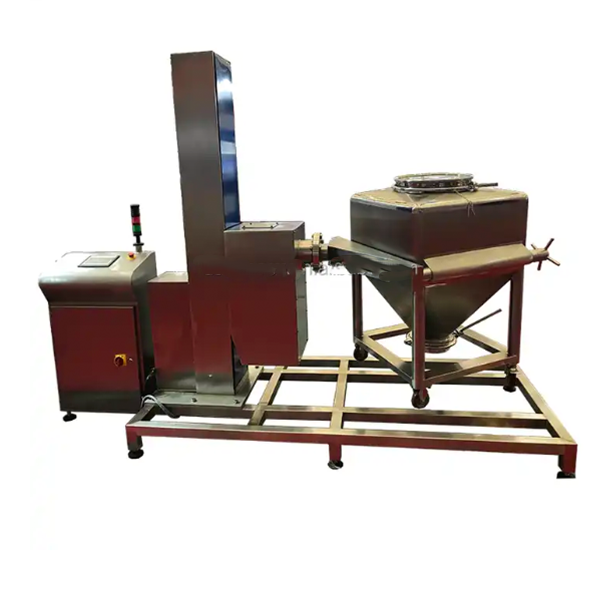

The machine is composed of column, machine base, rotation crotch,driving system, braking system, control system, etc.Push the mixing hopper into the rotation crotch and lock the nuts. Start the control system to lift the hopper to the mixing height and position it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data. After the mixing operation is finished,the rotation crotch will stop vertically, the hopper will be printed. Loosen the locknuts of the rotary crotch and push the hopper out and transfer it to the next procedure

Main features

1,The machine has such features as resonable structure,stable performance, convenient operation, no dead corners, and no exposed bolts.

2,The gyrator(mixing hopper) forms an included angle of 30° with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement and achieving the best mixing effect.

3,PLC automatic control is adopted. It is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production.
4,The machine is free from any dead corner of sanitation, and the exposed parts are made of high quality austentic stainless steel, fully meeting the requirements for medicine production in GMP
