Description

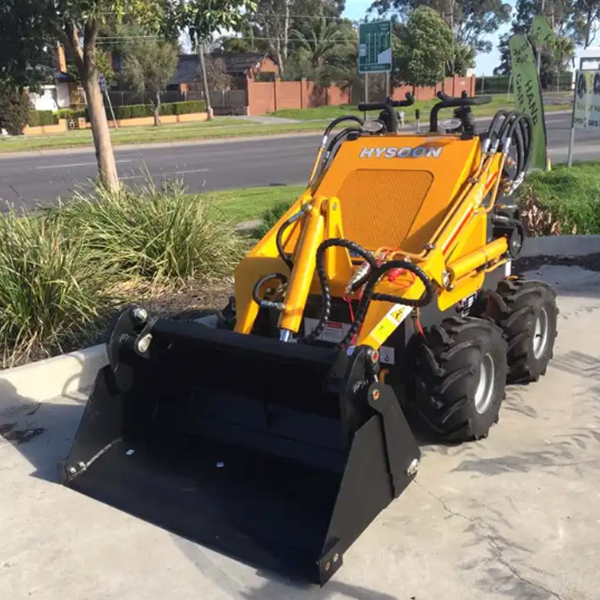

digging machine mini loader mini digger for garden mini skid steer trencher

Item
digging machine mini loader mini digger for garden mini skid steer trencher

Wheel Type
Track Type

Max working height(A)
2143 mm
2128 mm

Max pin height (B)
1884 mm
1869 mm

Max dump height(C)
1488 mm
1473 mm

The highest point discharge distance(D)
348 mm
399 mm

Total height (H)
1233 mm
1218 mm

The height from the ground(F)
118 mm
105mm

Wheelbase (G)
636 mm
612mm

No bucket length(J)
1752 mm
1752 mm

Total width (W)
1160 mm
1060 mm

Bucket width (K)
980 mm
980 mm

Total length(L)(with bucket)
2206 mm
2206 mm

Turning radius (R)
1307 mm
1317 mm

Bucket swing angle(β)
55°
55°

Bucket unloading angle(γ)
30°
30°

Opening-closing angle(θ)
25°
25°

Angle of departure(α)
11°
10°

Engine
Rated Power (KW)
17.15KW

Rotating Speed
3600rpm

Noise(Dd)
≤95

Hydraulic System
Pressure
17Mpa

Working Time(s)

Raise
4.27

Dump
1.34

Lower
3.31

Performance parameters
Operating Load
200kg

Bucket Capacity
0.15m³

Max Lifting Force
375kg

Travel Speed
0-5.5km/h

Operating Weight
890kg

Normal
Optional Item

Engine
American Briggs&Stratton gasoline engine 23HP.
Kohler gasoline engine 23.5hp

Pump
Chinese gear pump, double pump.
Chinese Triple pump; Italian servo pump(joystick)

Valve
Italian double valve.
Italian triple valve. Optional

Operating Handle:
double hydraulic mechanical handles.
one servo handle & one mechanical handle

Moving way:
wheel type with engineering tires.
wheel type with solid tires; rubber track type

Attachment:
Original with a standard bucket.
various attachments.
