Description

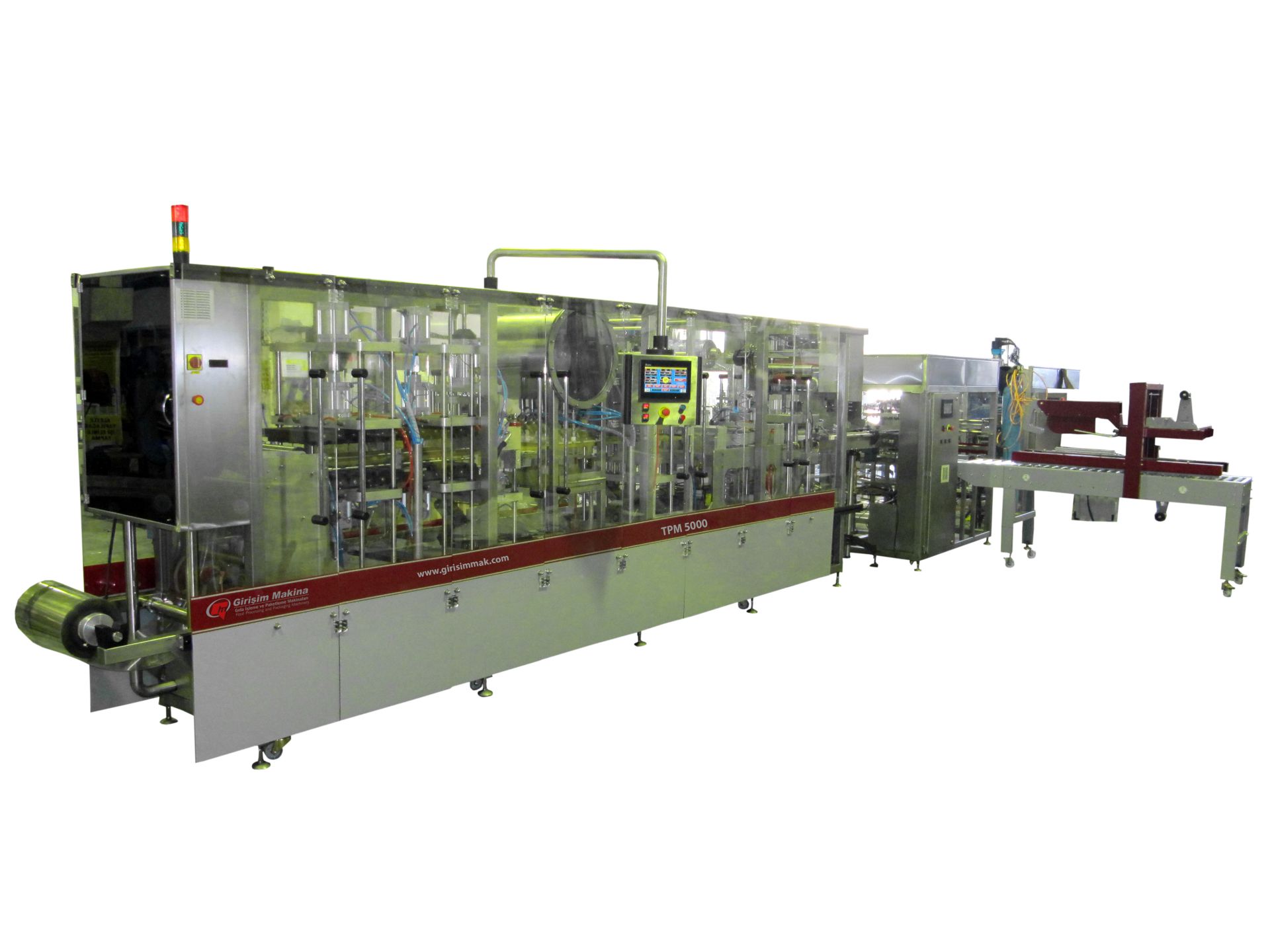

Cup water packaging machine is the horizontal thermoforming packaging machine working properly in high capacities where the heating, forming, filing, sealing and cutting processes are applied in the systematic order. First, the form of the cups is given to the packaging material (PET whose thickness is available to form from 250 microns to 1200 microns) on the pre-heating and forming stations. Second, the drinking water is filled into the formed cups at the desired volumes. Third, the formed and filled cups are sealed and then the cutting process is applied where cross-cutting and longitudinal cutting are realized. Finallyi the formed, filled, sealed and cutted water cups are sent to the product exit conveyor band.

– Except the water, it is possible to fill the other products such as lemonade, ayran, fruit yoghurt, fruit juice, turnip, etc.
